WG9112930001 Fifth Wheel

sinotruk howo a7 WG9112930001 Fifth Wheel
China National Heavy Duty Truck Group Co., Ltd. We are manufacturer of SINOTRUK GROUP, offer the best quality and new trucks, HOWO HOWO A7 and so on. Choose us, Choose best partner! Join us now !

Content

Product Name	sinotruk howo a7 WG9112930001 Fifth Wheel
Brand	Sinotruk HOWO, HOWO A7,Shacman,Foton Auman, Faw, Beiben,Dongfeng, CAMC.XCMG
Original factory	Shandong China
Delivery Time	Within 5 working days after receipt of payment
Port	Qingdao
Minimum Quantity	1
Package details	Cartoon, wooden box or as per customers requirement
Payment Term	L/C, T/T, Western Union

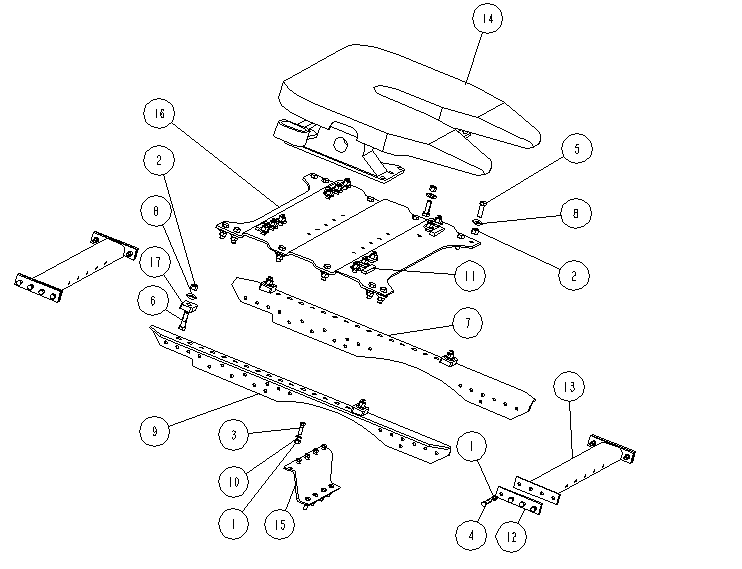

Pos	Number of Part	Quantity	Description	名称
1	Q33212T13F2	25	Type 2 hexagonal all-metal lock nut	2型六角全金属锁紧螺母
2	Q33216T13F2	28	Type 2 hexagonal all-metal lock nut	2型六角全金属锁紧螺母
3	Q150B1240TF2	9	Hex head bolts	六角头螺栓
4	Q150B1265TF2	16	Hex head bolts	六角头螺栓
5	Q150B1650TF2	24	Hex head bolts	六角头螺栓
6	Q150B1660TF2	4	Hex head bolts	六角头螺栓
7	AZ9925513307	1	Right-hand support plate	右角支撑板
8	190003937830	28	washer	垫圈
9	AZ9925513308	1	Left-hand support plate	左角支撑板
10	Q40112	9	Flat washer	平垫圈
11	1780S930009	4	Bracket plate pads	支架板垫块
12	AZ9925510032	4	Beam pads	横梁垫块
13	AZ9925510030	2	Beam assembly	横梁总成
14	WG9112930001	1	Tow seat assembly (high: 150mm)	牵引座总成（高：150mm）
15	AZ9925930041	1	Connection board	连接板
16	AZ9725930080	1	Saddle mounting plate	鞍座安装板
17	AZ9719930102	4	Saddle stop plate	鞍座止推板

POS	Number of part	Quantity	Designation
0	AC71414400902	1	Second Generation Applied Air Disc Brake
1	WG9100360310/1	1	Front-left Air Chamber 24 Inch
2	WG9100360320/1	1	Front-right Air Chamber 24 Inch
3	WG9100443009/1	2	Manual Override Stem Cap
4	AZ9100443010	2	Manual Override Stem Retainer
5	WG9100443011/1	2	Manual Override Stem Seal
6	WG9100443008/1	2	Manual Override Stem Saddle
7	WG9100443041/1	2	Manual Override Stem Shaft
8	WG9100443043/1	2	Manual Override Stem Spring
9	WG9100443042/1	2	Manual Override Stem Gear
10	AZ9100443016	4	End Sleeve
11	Q218B1450TF2	2	Guide Sleeve Bolt
12	AZ9100443013	2	Guide Sleeve
13	Q218B1645TF2	8	Return Screw
14	WG9100443014/1	4	Housing Guide Sleeve Bush
15	AZ9100443301	1	Housing(left)
16	AZ9100443401	1	Housing(right )
17	WG9100443017/1	4	Housing Guide Sleeve Excluder
18	AZ9100443023	4	Half Bearing Saddle
19	WG9100443022/1	4	Half Bearing
20	WG9100443031/1	2	Operation Shaft
21	WG9100443033/1	4	Bearing
22	WG9100443034/1	4	Rivet
23	AZ9100443021	4	Roller
24	WG9100443024/1	2	Gasket
25	WG9100443027/1	4	Piston Dust Excluder
26	Q218B0825TF2	16	Piston Housing Assembly Bolt
27	Q151B1660TF2	24	Brige Screw
28	Q151B2060TF2	12	Carrier Screw
29	WG9925440396/1	2	Disc
30	AZ9100443002	2	Carrier
31	AZ9100443004	2	Brige
32	WG9100443017/1	4	Brige Guide Sleeve Excluder
33	WG9100443019/1	4	Brige Guide Sleeve Bush
34	AZ9100443013	4	Bride Guide Sleeve
35	WG9100443017/1	4	Brige Guide Sleeve Excluder
36	Q218B1450TF2	4	Guide Sleeve Bolt
37	AZ9100443018	4	End Cap
38	Q150B1020TF2	2	Screw
39	AZ9100443006	2	Pad Retaining Plate
40	WG9100443050/1	4	Pad Assembly
41	WG9100443032/1	2	Drive Pin
42	WG9100443532/1	4	Tappet
43	WG9100443511/1	2	Adjuster Shaft
44	WG9100443528/1	2	Adjuster Bush
45	WG9100443512/1	2	Adjuster Gear
46	WG9100443525/1	4	Tappet Distance Sleeve
47	AZ9100443518	2	Adjuster Plate
48	WG9100443524/1	2	Adjuster Distance Sleeve
49	WG9100443526/1	2	Unilateralism Clutch
50	WG9100443529/1	2	Clutch Shaft Bush
51	WG9100443519/1	2	Return Spring
52	WG9100443515/1	2	Overload Clutch Shaft
53	WG9100443513/1	2	Saddle
54	WG9100443520/1	2	Thrust Bearing
55	WG9100443530/1	4	Pistion Bush
56	WG9100443521/1	2	Bearing Backing Board
57	WG9100443517/1	6	Overload Clutch Innner Friction Piece
58	WG9100443514/1	2	Overload Clutch Shell
59	WG9100443536/1	2	F1008 Flanging Bearing
60	AZ9100443527	2	Pistion Bracket
61	WG9100443539/1	4	Seal
62	WG9100443531/1	4	Pistion
63	WG9100443534/1	4	Exluder Clamping Ring
64	AZ9100443533	2	Spreader Plate
65	Q43112	4	Circlip for Shaft
66	WG9100443516/1	6	Exterior Overload Clutch Friction Piece

Pos.	Number of part	Quantity	Designation	名称
1	AZ9725523309	4	Plate	垫板
2	AZ9725520220	2	Balance shaft box C	平衡轴带轴壳总成
2-1	AZ9725520237	2	balance shaft	平衡轴
2-2	Q5211630	2	column pin	园柱销
2-3	AZ9725520233	2	bracket	支架
2-4	AZ9725520235	2	Balance shaft box	平衡轴壳
2-5	WG9114520042	2	Ball bearing	球面轴承
2-6	190003962021	2	Screw	锥螺纹内六角螺塞
2-7	199114520136	2	bearing Seal cover	轴承油封盖
2-8	AZ9114520222	2	ring	型环
2-9	AZ9114520223	2	Gasket	轴密封圈
2-10	WG614 130062	2	Gasket	密封圈
2-11	AZ9725520238	2	Space sleeve	间隔衬套
2-12	199014520192	2	orientation washer	定位垫圈
2-13	AZ9725520239	2	Bearing pressing block	轴承压块
2-14	Q40312	12	Spring washer	弹簧垫圈
2-15	Q150B1245TF2	12	Screw	六角头螺栓
2-16	199014520311	2	Housing cover	壳盖
2-17	Q40308	16	Spring washer	弹簧垫圈
2-18	Q150B0820	16	Screw	六角头螺栓
3	AZ9625520365	4	Plate	导向板
4	Q40312	8	Spring washer	弹簧垫圈
5	Q151C1255	8	Screw	六角头螺栓
6	Q151B20120	4	Screw	六角头螺栓
7	Q40120	4	Washer	平垫圈
8	Q151B1660	20	Screw	六角头螺栓
9	Q151B1665	2	Screw	六角头螺栓
10	Q151B1690	16	Screw	六角头螺栓
11	190003888459	38	Lock nut	自锁螺母
12	Q151B1680	16	Screw	六角头螺栓
13	190003888459	16	Lock nut	自锁螺母
14	WG9725520281	2	Rear spring C	后钢板弹簧总成（1697桥）
14－1	WG9725520281+001	2	1st leaf, rear spring	后钢板弹簧总成第一片（1697桥）
14－2	WG9725520281+002	2	2nd leaf, rear spring	后钢板弹簧总成第二片（1697桥）
14－3	WG9725520281+003	2	3rd leaf, rear spring	后钢板弹簧总成第三片（1697桥）
14－4	WG9725520281+004	2	4th leaf, rear spring	后钢板弹簧总成第四片（1697桥）
14－5	WG9725520281+005	2	5th leaf, rear spring	后钢板弹簧总成第五片（1697桥）
14－6	WG9725520281+006	2	6th leaf, rear spring	后钢板弹簧总成第六片（1697桥）
14－7	WG9725520281+007	2	7th leaf, rear spring	后钢板弹簧总成第七片（1697桥）
14－8	WG9725520281+008	2	8th leaf, rear spring	后钢板弹簧总成第八片（1697桥）
14－9	WG9725520281+009	2	9th leaf, rear spring	后钢板弹簧总成第九片（1697桥）
14－10	WG9725520281+010	2	10th leaf, rear spring	后钢板弹簧总成第十片（1697桥）
14－11	WG9725520281+011	2	11th leaf, rear spring	后钢板弹簧总成第十一片（1697桥）
14－12	WG9725520281+012	2	12th leaf, rear spring	后钢板弹簧总成第十二片（1697桥）
14－13	WG9725520281+013	2	Center bolt,rear spring	后钢板弹簧总成中心螺栓
14－14	WG9725520281+014	2	Center nut,rear spring	后钢板弹簧总成中心螺母
15	AZ9725520253	4	Spring clip	后簧骑马螺栓
16	AZ9725520254	2	Plate	板簧压块
17	Q33224T13F2	8	Lock nut	2型全金属六角锁紧螺母
18	AZ9725523272	2	V Bracket C	V型推力杆总成
19	WG9725520366	8	Screw	V型推力杆螺栓(Q1802270TF2)
20	AZ9714520227	8	Screw	双头螺栓
21	190003871353	8	Nut	1型六角螺母-细牙-A--螺母GB6171-86-M18*1.5-10-ZnD
22	Q40318	8	Spring washer	弹簧垫圈
23	AZ9725521174	4	Bracket bellow C	浇铸式下推力杆总成
24	Q151B20180TF2	4	Screw	六角头螺栓
25	Q151B20100TF2	8	Screw	六角头螺栓
26	190003888467	12	Lock nut	自锁螺母
27	WG9725520376	4	Stop block	限位块
28	Q150B1460TF2	16	Screw	六角头螺栓
29	Q40314	16	Spring washer	弹簧垫圈
30	AZ9725520269	4	Protective cap	保护帽
31	AZ9725520265	8	Fix bar	固定条
32	AZ9725520267	16	bushing	套管
33	AZ9725520266	4	Plate	夹板
34	Q218B1285	16	hexagon socket head cap screw	内六角圆柱头螺钉
35	Q33212	16	Nut	2型全金属六角锁紧螺母
36	AZ9725520290	1	Bracket left,front	推力杆前左支架(HW1279桥用)
37	AZ9725520291	1	Bracket right,front	推力杆前右支架(HW1279桥用)
38	Q151B22290TF2	8	Screw	六角头螺栓
39	190003888630	8	Lock nut	自锁螺母
40	190003901905	2	Pin	园柱销--销GB119 A20*24
41	AZ9725520273	2	Rubber bearing C	橡胶支座总成
42	AZ9725520296	1	Bracket left,rear	推力杆后左支架(1697桥）
43	AZ9725520297	1	Bracket right,rear	推力杆后右支架（1697桥）
44	AZ9725520274	2	Rubber bearing C	橡胶支座总成(1697桥）
